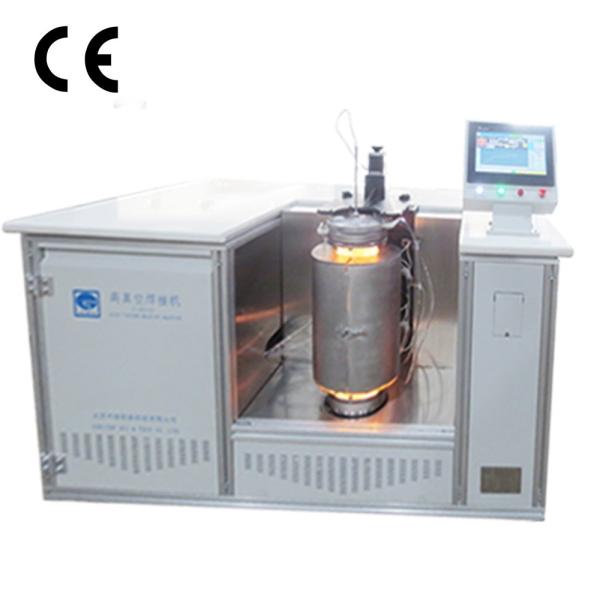

CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools

Name: CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools
Brand: CHN-TOP
Price: 1 USD

Cheap CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools for sale

Brand Name : CHN-TOP

Model Number : ZT-ZKHJ180

Certification : CE

Place of Origin : CHINA

MOQ : 1 SETS

Price : Negotiable

Payment Terms : L/C, T/T, D/A, MoneyGram

Supply Ability : 50 SETS/MONTH

Delivery Time : 5-60 WORKING DAYS

Packaging Details : WOODEN CASE

Model No. : ZT-ZKHJ180

Brand : CHN-TOP

Product name : Vacuum brazing machine

Application : PCD PCBN DIAMOND TOOLS BRAZING

Vacuum process : clean, fixiing, drying and brazing

Contact Now

PCD BLANK TOOLS EQUIPMENT TOOLS MACHINIING PCD BLANK PCD TOOLS VACUUM BRAZING MACHINE

Vacuum Brazing machine is excellent for brazing ultra-hard material(PCD /PCBN/ MD/ ND /CVD), TUNGSTEN carbide, ceramics and others;

It's fully automatic and very easy to operate at high efficienty

Materials: Natural Diamond, Monocrystal diamond, PCD , PCBN, CVD and cermet
Substrate material:CERMET, tungsten carbide, steel, stainless steel, steel alloy ,ceramic, etc

CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools

MAIN FEATURES

1, PLC control, SCR heating, touch panel,
 automatic implement after simple setting with easy temperature control.
 2, No oxidation, clean surface, environment-friendly.
 3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.
 4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.
 5, Reduction of distortion even very small tool insert can be brazed.
 6, High brazing strength, 2 times higher than induction welding.
 7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.
 Besides the standard machine, we can offer OEM according to clients’ requirement.

Technical Parameters:

  	 			Dimensions 			1600*950*900mm( L*W*H)
 			Power supply 			3 phases-380V-15KW
 			Chamber 			Quartz Glass Tube
 			Chamber size 			￠180*500(L)*T4(mm)
 			Brazing Capability
 			For example: CNGA1204 approx 350pcs/cycle

 			Max Temperature 			950℃
 			Limiting Vacuum rate 			10-6 Torr (10-4 Pa)
 			Vacuum Rate 			10-5 Torr (10-3 Pa)
 			Heating source 			18 pcs halogen tubes
 			Chilling 			Water


Brazing Samples

CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
